27″ Medical Open-Frame TouchScreen Monitor
The 27-ich medical open-frame monitor combines multi-touch PCAP technology, high-bright LED, and a 4K industrial-grade TFT display in a plug-and-play package with best-in-class performance. Optimized for medical applications requiring IEC 60601 / IEC 61010 Certification, it makes an excellent solution for the high-reliability healthcare market and can be customized to any application.
Contact a sales representative to order a sample today!
Sample units in stock.
Get pricing and availability today.
Part Number: 89-OFM-MED-270-001
Interested in ordering a demo unit? Contact a sales representative today.
Specifications
Display
| Size | 27” |
| Pixel Pitch | 0.1554 mm x 0.1554 mm |
| Resolution | 3840 x 2160 |
| Viewing Angle | 178° H / 178° V |
| Brightness | 1000 nits |
| Color Support | 1.07 billion (8 bit +A-FRC) |
| Response Time | 14 ms |
| Contrast Ration | 1000 : 1 |
| Aspect Ratio | 16:9 |
Touch Technology
| Technology | Projected Capacitive |
| Touch Points | Up to 10 |
| Response Time | < 10 ms |
System
| Connectivity | HDMI x 2, DisplayPort x 2 |
Operating Environment
| Temperature Range | 0° to 50° C |
| Humidity | 80%RH |
Physical

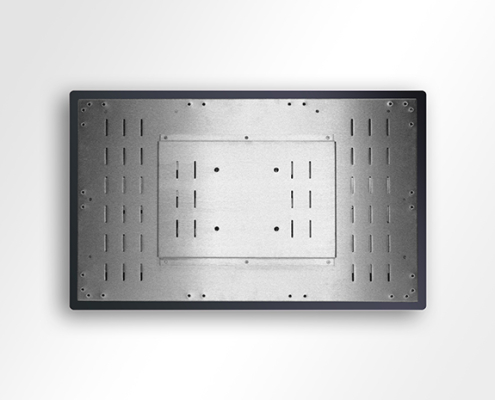

| Mounting Options | Rear VESA, Optional Side Flanges |
| Weight | 17.1 lbs |
